Wiping Cloths

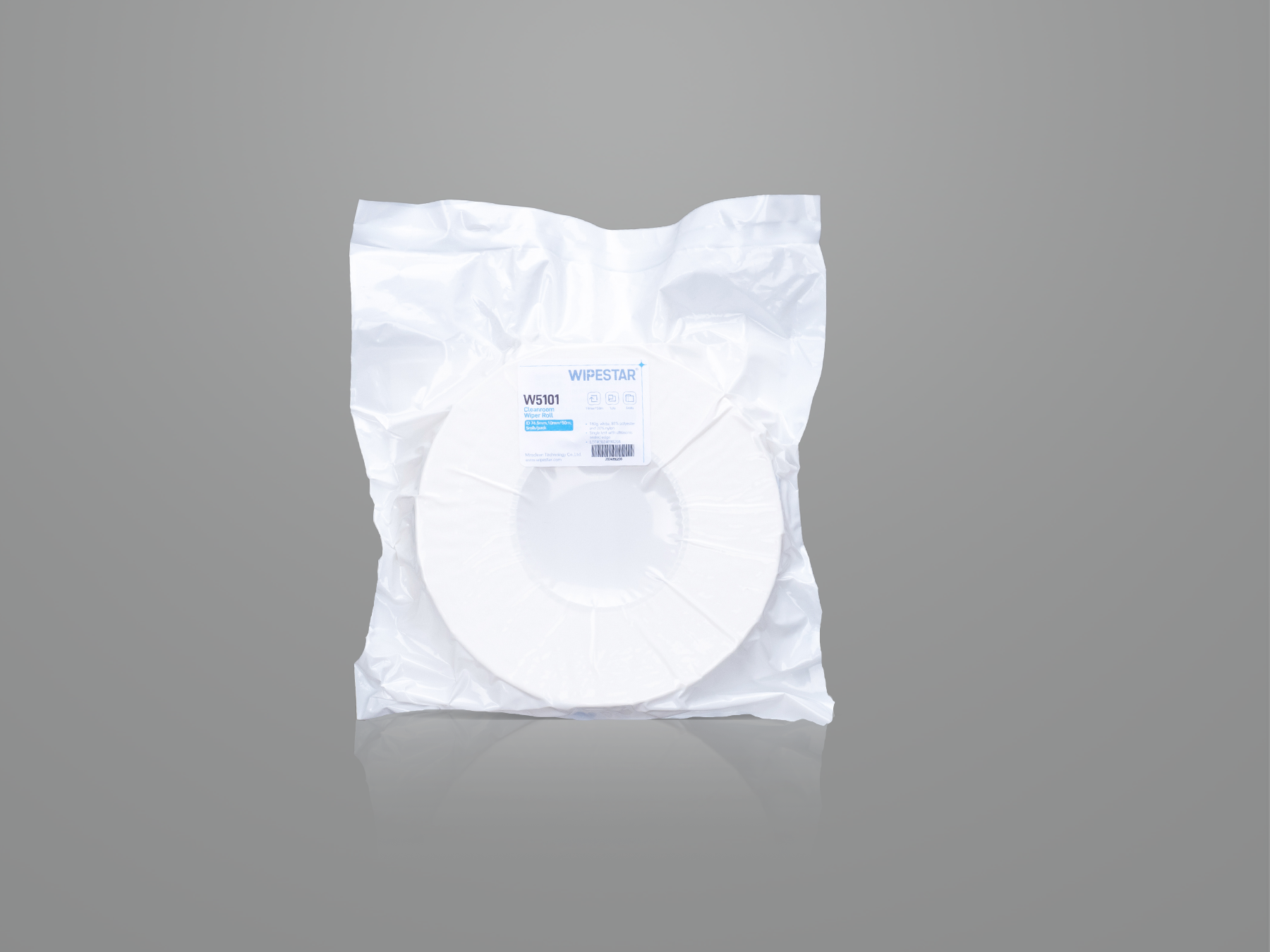

W5101 Microfiber Cleanroom Wiper Rolls

The roll design is better suited for automated equipment. Suitable for:

● Wafers, TFT, LCM (liquid crystal display modules), LCM port terminals, and the LED industry.

● Terminals of LCD modules, micro motor cleaning tapes, and the optoelectronics industry.

● Phone cover glass (CG), camera cover glass (CG), stainless steel sheets, digital printer heads, OCA full lamination, dispensing machine needles, assembled phone products, and optical fibers.

● Class 100 to Class 100,000 cleanroom environments.

Request for Quote

Product Overview & Guides

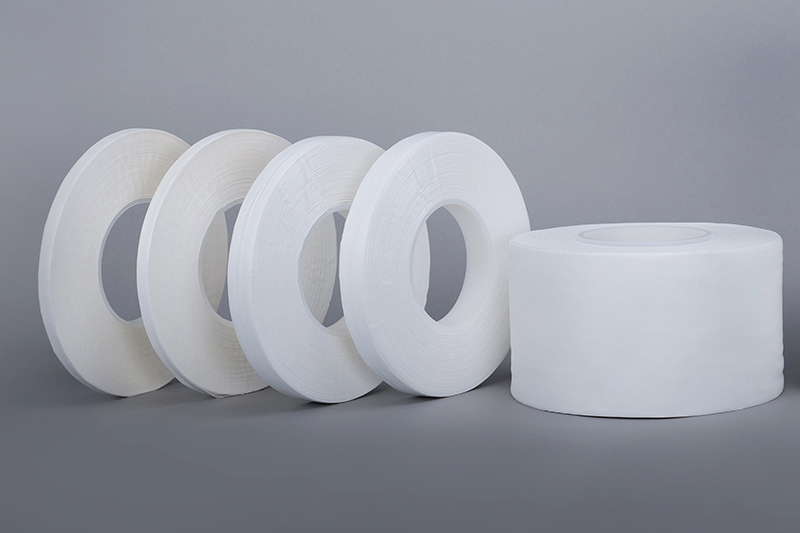

WIPESTAR cleanroom wiper rolls are made from microfiber and designed with perforated rolls setting up on machines for automated cleaning, and it is significantly reducing costs.

The fabric texture is soft and delicate with strong cleaning capability.

The four edges are ultrasonic sealed with a fabric weight of 180 GSM.

Available in 6 sizes.


Product Features

● Ultra-fine fibers have strong removal capabilities for fingerprints, oil stains, ink stains, and powder stains, especially for particles smaller than 0.5µm.

● Silicone-free, low dust generation, low ion content, and low NVR, suitable for critical environment wiping.

● The soft and delicate fabric texture is ideal for wiping scratch-prone surfaces such as optical lenses, with minimal lint and residue.

● Available in laser sealed edge or ultrasonic sealed edge. The cloth is flat and smooth, not easy to be damaged, and has high cleanliness.

● Produced in a Class 100 cleanroom and laundered with ultra-pure water.

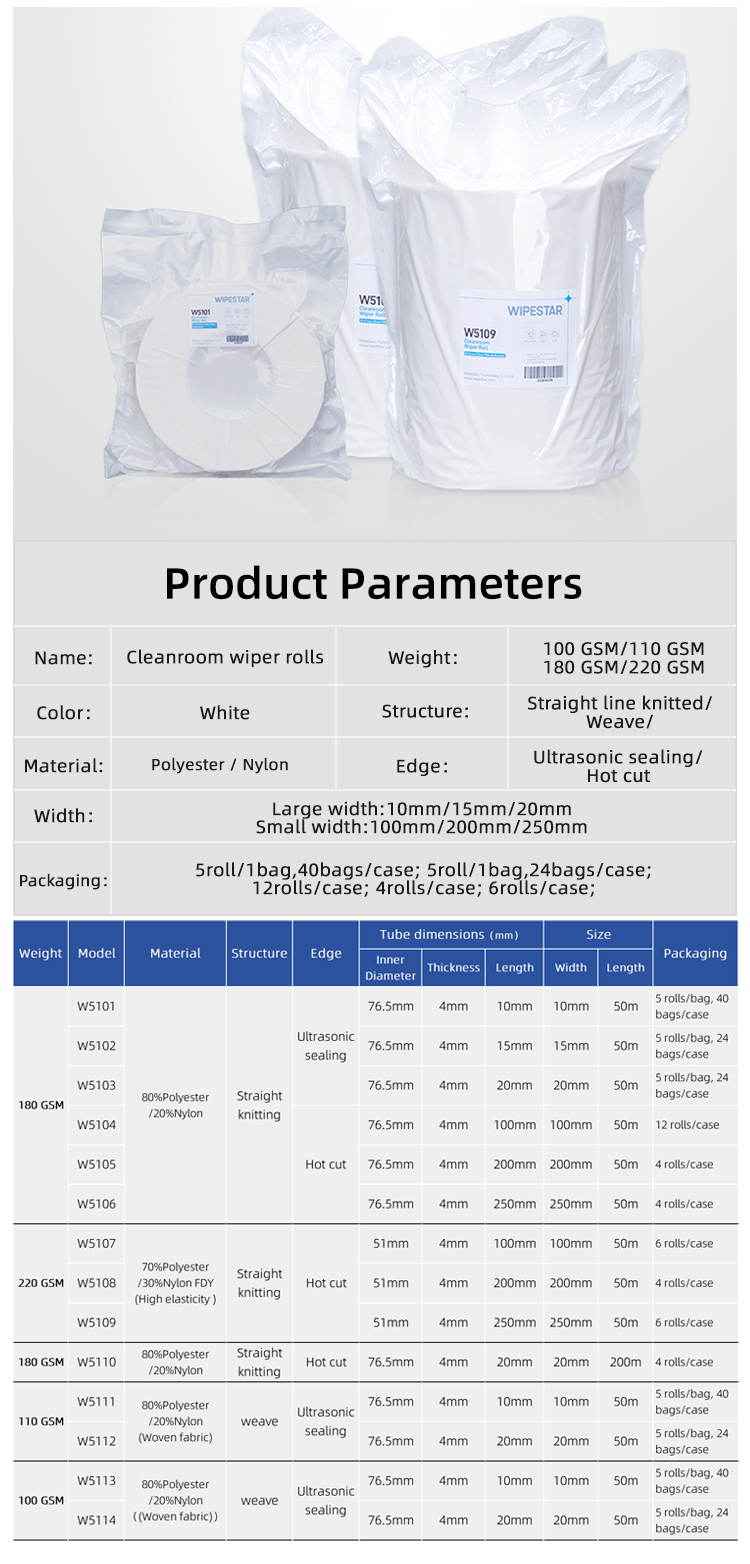

Specifications
Model Weight Material Size Pattern Structure Color Packaging Edge Shipping
W5101 180 GSM 80%Polyester/20%Nylon Cloth size: 10mm x 50m
Tube inner diameter: 76.5mm
Tube thickness: 4mm
Tube length: 10mm
Plain Single knitting White Perforated roll Ultrasonic sealing 5 rolls/bag, 40 bags/case

Model

W5101

Weight

180 GSM

Material

80%Polyester/20%Nylon

Size

Cloth size: 10mm x 50m
Tube inner diameter: 76.5mm
Tube thickness: 4mm
Tube length: 10mm

Pattern

Plain

Structure

Single knitting

Color

White

Packaging

Perforated roll

Edge

Ultrasonic sealing

Shipping

5 rolls/bag, 40 bags/case

Request a Sample
